Get started

This document is intended to guide users on how to install PictoBlox programming software, as well as basic operations

../_images/pic2.png

One. Environment construction

1. Software download

1.2 Official website download

login Pictoblox Select the software version corresponding to the operating system

../_images/pic4.png

2. Software Installation

../_images/pic1.gif

Two. Quick start

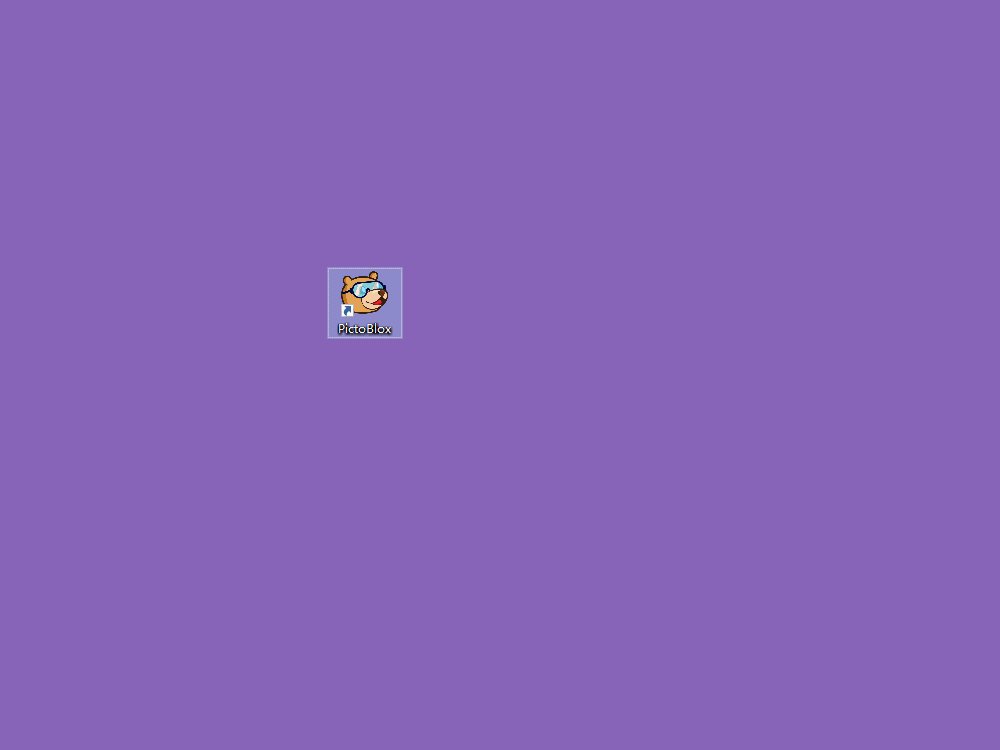

1. Open the software

../_images/pic3.gif

Note

Double-click the Pictoblox icon on the desktop to run the software.

2.Connection operation

2.1 Select the development board type

../_images/pic4.gif

Note

Click board'' in the menu bar, then select ``T-Watch

2.2 USB connection T-watch

../_images/model2.jpg

Note

Use the Type-C data cable to connect to the Type-C interface of T-Watch, as shown above, on the ``right side’’ of the watch

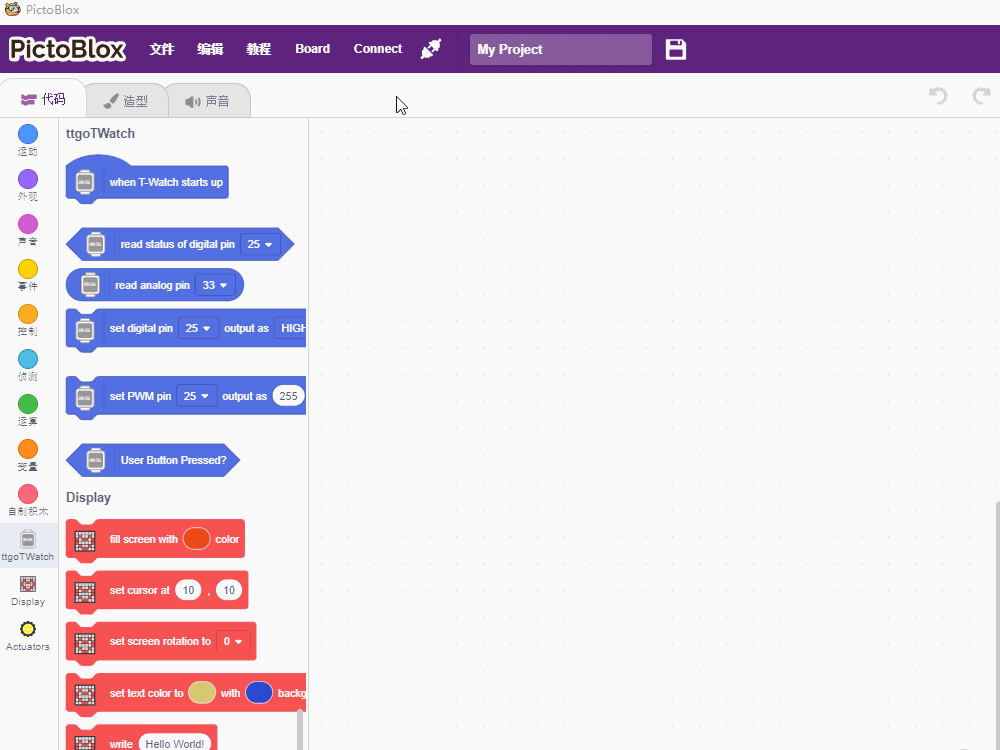

2.3 Select port

../_images/pic5.gif

Note

Click Connect in the menu bar, and then select the generated COMXX

3. Upload program

3.1 Choose blocks

../_images/pic6.gif

3.2 Adjustment parameter

../_images/pic7.gif

3.3 Upload program

../_images/pic8.gif

3.4 normal run
